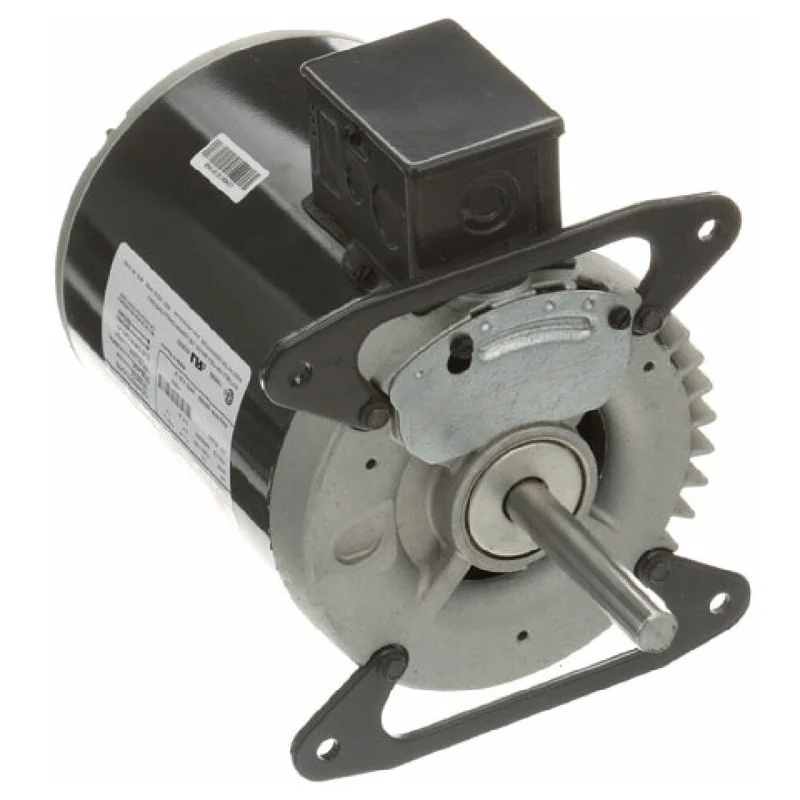

Duke 153036SED 8 Inch Heavy Duty Electric Motor 200 to 240 Volts 1/2 Hp

Description

Duke 153036SED [ 200-240v ] [ 1/2-1/4 Hp ][ 50/60 Hz ] [1ph ] 2 Speed., [1725/1140 Rpm ] [3.5-4.0/1.5-1.8 A ] [cw/reversible, Rotation ] [3-1/2″ X 5/8″ Shaft W/ 2 Flats ], If Using An Emerson Motor On A Garland Oven The Two, Gray Wires May Not Be Needed. Cap Them Individually With, Wire Nuts. Ground Wire To Motor Case May Need To Be, Added., For Garland Oem Motor 168702 Use #68-1259, Blower Wheel 9-7/8″ Dia X 2-1/2″ Deep X 5/8″ Bore # 26-1328, Or Gen Use Blower Wheel 10″ Dia. X 2″ Deep X 5/8″ Bore, # 26-4052, Duke Oven Series E
